§ Overview

IonCube is one of the most widely deployed PHP obfuscation systems. It replaces human-readable PHP source with a proprietary binary format; a closed-source loader extension re-materialises the Zend opcode array at runtime. The standard analysis approach — hooking the loader at runtime — requires a running PHP environment, the correct PHP version, and leaves traces the loader can detect.

This article documents a fully static approach developed from the PHP 8.1 loader and then ported to the PHP 8.2, 8.3, and 8.4 v15.5.0 loaders. The Python toolkit decodes the HR+c container, inflates the body, recovers supported main/function/class op_arrays, and emits a normalized icdump-ir-v1 plus a readable opcode listing — without executing the encoded sample.

Supported loader profiles

Each profile selects its own handler-lane tables, opcode metadata, type-dimension table, feature word, interned-string table, and Zend opcode bound. The container constants remain shared; the PHP ABI is read from php_version_code in the decrypted header trailer, not inferred from the HR+c revision word.

01 The HR+c Container Format

The tested PHP 8.1–8.4 v15 samples share the same outer HR+c layout. A standard PHP stub opens the file — if the loader is absent the stub executes die() with a human-readable error — and closes with a bare ?>. The four-byte ASCII sequence HR+c follows immediately with no whitespace. Every byte from the H through to end-of-file is a single custom Base64-encoded blob.

<?php //0b9e ...
// IonCube Loader is required ...
die("... loader not installed ..."); ?>HR+c[base64-payload…to-EOF]
                                          ↑ no space here

Finding the format handler in IDA

Two searches bring you directly to sub_1009E160 — the function that validates the marker and decodes the meta-header. All six format constants live inside it:

Alt+B → ASCII "HR+c"       # string literal compared in the preamble
Alt+I → 0x2853CEF2        # VERSION_XOR — first immediate in the dispatch path

Custom Base64 Alphabet

IonCube shifts digit characters to the front. Any standard Base64 decoder silently produces garbage because its lookup table is wrong:

ioncube:  0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz+/
standard: ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/

ALPHA = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz+/"
LUT   = {c: i for i, c in enumerate(ALPHA)}

def ioncube_b64decode(s: str) -> bytes:
    out = bytearray()
    for i in range(0, len(s), 4):
        a = LUT[s[i]];   b = LUT[s[i+1]]
        c = LUT[s[i+2]]; d = LUT[s[i+3]]
        n = (a << 18) | (b << 12) | (c << 6) | d
        out += bytes([(n >> 16) & 0xFF, (n >> 8) & 0xFF, n & 0xFF])
    return bytes(out)   # caller trims any trailing padding bytes

Decoded Payload Structure

Offset  Size   Field
──────  ─────  ─────────────────────────────────────────────────────────
0x00    4      version_word        uint32 LE — XOR-verified first
0x04    24     meta_header_raw     escape-encoded  →  12 decoded bytes
0x1C    var    chunked_cipher      assembled up to header_size bytes
 +8     8      transition_block    [4 Adler-17 checksum] [4 reserved]
(var)   var    body                MT4IC-encrypted DEFLATE frames

version = unpack32le(payload, 0) ^ 0x2853CEF2
if version not in HRC_VERSIONS:   # container revisions, not PHP ABI codes
    raise ValueError("wrong loader version or corrupt file")

02 Meta Header Decoding — Step by Step

Step 1 — Escape decode: 24 raw bytes → 12 decoded bytes

The 24 bytes at offset 0x04 use a one-byte escape scheme designed so 0xFF never appears literally in the output. Walk the input one byte at a time; the encoder always produces exactly 12 decoded bytes:

def escape_decode(raw: bytes) -> bytes:
    out, i = bytearray(), 0
    while i < len(raw):
        b = raw[i]; i += 1
        if b == 0xFF:
            nxt = raw[i]; i += 1
            out.append(0x3C if (nxt & 0x80) else 0xFF)
        else:
            out.append(b)
    return bytes(out)    # guaranteed 12 bytes for the meta-header input

# Example — 6 raw bytes → 4 decoded bytes:
#   0x41        →  literal 'A'  → out: 0x41
#   0xFF 0x9F   →  0x9F & 0x80 ≠ 0  → out: 0x3C
#   0xFF 0x20   →  0x20 & 0x80 = 0  → out: 0xFF
#   0x42        →  literal 'B'  → out: 0x42

Step 2 — Parse the 12-byte meta header

Step 3 — Recover true sizes with XOR constants from sub_1009E160

Four constants unmask the real values. seed is intentionally folded into both formulas so the same raw bytes mean different things in every file — without seed you cannot decode either size:

# file_size: XOR with seed AND constant, then subtract offset
logical_file_size = (raw_file_size  ^ seed ^ FILE_SIZE_XOR)  - FILE_SIZE_OFFSET

# header_size: XOR constant first, subtract offset, then XOR seed
header_size       = ((raw_header_size ^ HEADER_SIZE_XOR) - HEADER_SIZE_OFFSET) ^ seed

Step 4 — Chunk parser: assembling header_size bytes of ciphertext

Starting at payload offset 0x1C, variable-length chunks are consumed until exactly header_size bytes of ciphertext are collected. Each chunk begins with a 2-byte control word (flag, second):

def read_chunks(payload: bytes, pos: int, header_size: int):
    cipher = bytearray()
    while len(cipher) < header_size:
        flag   = payload[pos]
        second = payload[pos + 1]
        pos   += 2
        if flag & 0x80:
            # literal chunk: copy exactly `second` bytes verbatim
            chunk = payload[pos : pos + second]
            pos  += second
            if flag & 0x40:
                chunk = bytes(chunk) + b'\x3C'   # forced suffix byte
        else:
            # fixed chunk: always 0xE3 (227) bytes, `second` is unused
            chunk = payload[pos : pos + 0xE3]
            pos  += 0xE3
        cipher += chunk
    return bytes(cipher[:header_size]), pos   # trim any over-read

Step 5 — Transition block and Adler-17 verification

Immediately after the last chunk an 8-byte transition block appears. The first 4 bytes are escape-decoded and compared against the Adler-style checksum of all assembled ciphertext. IonCube's variant initialises both 16-bit accumulators at 17 — not the standard Adler-32 value of 1:

def adler17(data: bytes) -> int:
    low  = 17          # 17 & 0xFFFF = 17
    high = 0           # 17 >> 16    = 0
    for b in data:
        low  = (low  + b) % 0xFFF1
        high = (high + low) % 0xFFF1
    return low | (high << 16)

stored = unpack32le(escape_decode(transition_block[0:6])[:4])  # first 4 escape-decoded bytes
assert stored == adler17(ciphertext)

03 Header Encryption: MT4IC (PRNG Type 5)

The assembled ciphertext is decrypted with MT4IC — IonCube's "type 5" PRNG. It combines a linear congruential generator (state t1) with an xorshift (state t2) into a 4 096-entry Complementary Multiply-With-Carry (CMWC) ring buffer.

Identifying MT4IC in IDA

Three constants uniquely fingerprint sub_10090F30:

COUNT      = 0x1000   # ring size → alloc of 0x4000 bytes (4096 × uint32)
MULTIPLIER = 0x10DCD  # 69069 — Borosh-Niederreiter LCG multiplier
CMWC_MULT  = 0x495E   # 18782 — CMWC carry multiplier

# IDA searches to locate the functions:
#   Alt+I → 0x10DCD   appears in both init (sub_10090F30) and get() (sub_10091060)
#   Alt+I → 0x495E    appears only in get()
#   malloc/VirtualAlloc site with argument 0x4000 → the ring buffer allocation

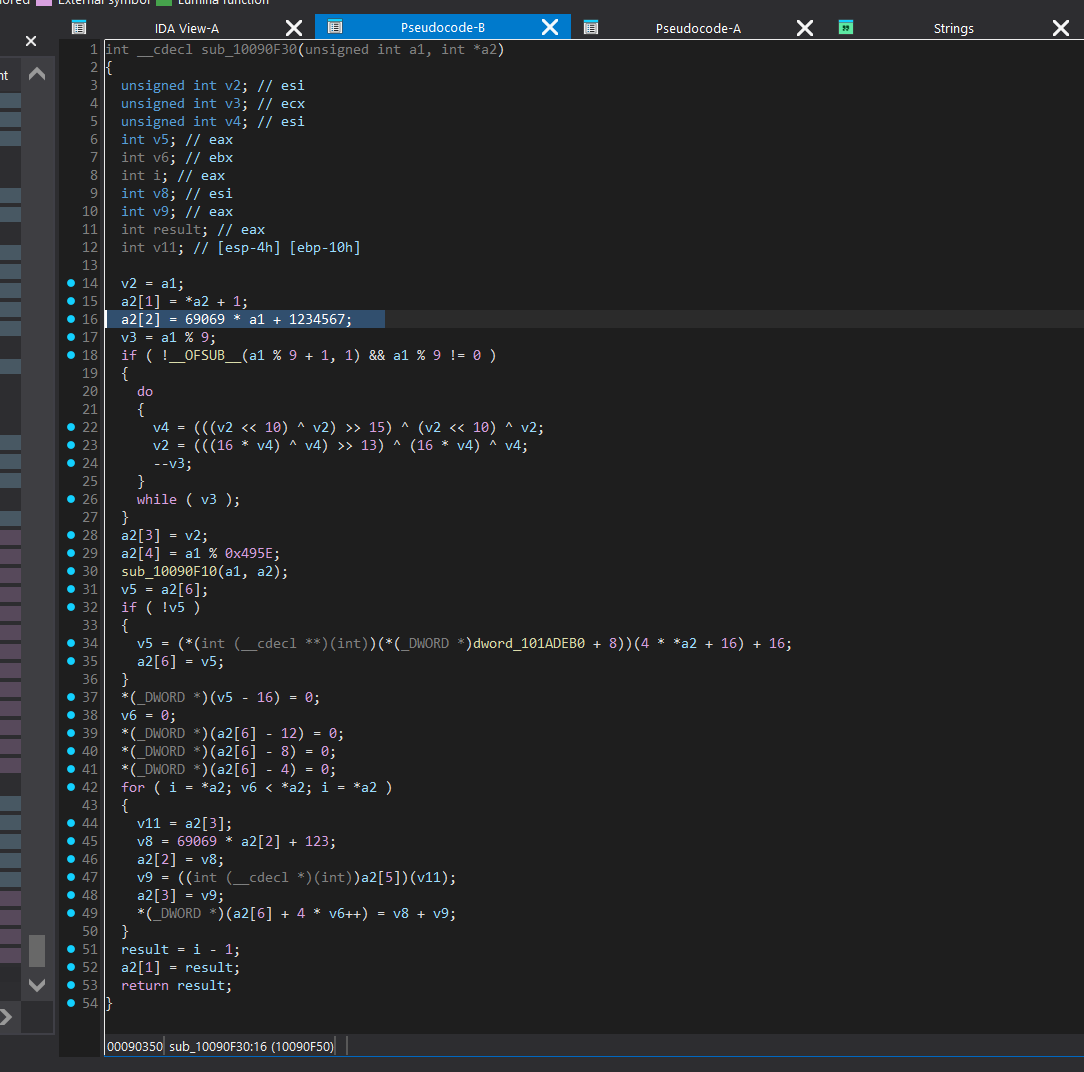

MT4IC Initialization — sub_10090F30

The initialiser sets up three independent state components, then fills the ring buffer. The parity of seed selects between two xorshift variants for the ring fill — this is the most common implementation mistake:

COUNT      = 0x1000    # 4096 ring entries
MULTIPLIER = 0x10DCD   # 69069 LCG multiplier
CMWC_MULT  = 0x495E    # 18782

def MT4IC_init(seed: int):
    # ── t1: LCG — one warm-up step before the ring fill ──────────────
    t1 = (seed * MULTIPLIER + 0x12D687) & 0xFFFFFFFF

    # ── t2: xorshift — (seed % 9) warm-up rounds ─────────────────────
    t2 = seed
    for _ in range(seed % 9):
        t2 ^= (t2 << 10) & 0xFFFFFFFF
        t2 ^=  t2 >> 15
        t2 ^= (t2 <<  4) & 0xFFFFFFFF
        t2 ^=  t2 >> 13

    # ── carry: initialised as seed modulo CMWC_MULT ──────────────────
    carry  = seed % CMWC_MULT
    parity = seed & 1         # 0 = even, 1 = odd
    ring   = [0] * COUNT

    # ── ring buffer fill — parity selects xorshift variant ───────────
    for i in range(COUNT):
        t1 = (t1 * MULTIPLIER + 0x7B) & 0xFFFFFFFF
        if parity:            # odd seed: 3-step xorshift
            t2 ^= (t2 << 13) & 0xFFFFFFFF
            t2 ^=  t2 >> 17
            t2 ^= (t2 <<  5) & 0xFFFFFFFF
        else:                 # even seed: 3-step xorshift (different constants)
            t2 ^=  t2 >> 9
            t2 ^= (t2 <<  1) & 0xFFFFFFFF
            t2 ^=  t2 >> 7
        ring[i] = (t1 + t2) & 0xFFFFFFFF

    return ring, carry        # index starts at 0

MT4IC get() — CMWC step — sub_10091060

def get(self) -> int:
    self.index  = (self.index + 1) % COUNT
    product     = self.ring[self.index] * CMWC_MULT + self.carry   # 64-bit product
    lo, hi      = product & 0xFFFFFFFF, (product >> 32) & 0xFFFFFFFF
    folded      = (lo + hi) & 0xFFFFFFFF
    if folded < hi:          folded = (folded + 1) & 0xFFFFFFFF; hi += 1
    if folded == 0xFFFFFFFF: folded = 0;                         hi += 1
    self.carry              = hi & 0xFFFFFFFF
    value                   = (0xFFFFFFFE - folded) & 0xFFFFFFFF
    self.ring[self.index]   = value
    return value

Header decryption formula

The last 16 bytes of the ciphertext serve a dual purpose: they hold the MD4 digest of the plaintext stored byte-rotated (ROL3), and simultaneously act as a 16-byte repeating XOR mask. Rotating each byte left 3 bits recovers both at once:

def rol8(b: int, n: int = 3) -> int:
    """Rotate byte left by n bits."""
    return ((b << n) | (b >> (8 - n))) & 0xFF

# Step 1: derive XOR mask from last 16 ciphertext bytes
mask = bytes(rol8(b) for b in ciphertext[-16:])  # ROL3 each byte

# Step 2: decrypt all bytes except the last 16
prng      = MT4IC(seed)
plaintext = bytes(
    ciphertext[i] ^ mask[i & 0xF] ^ (prng.get() & 0xFF)
    for i in range(len(ciphertext) - 16)
)

# Step 3: MD4 integrity gate
# The mask IS the MD4 digest — stored as ROR3(digest) in the ciphertext tail,
# recovered here as ROL3. Wrong seed → wrong PRNG stream → wrong plaintext → wrong digest.
import hashlib
assert hashlib.new('md4', plaintext).digest() == mask

04 Decrypted Header: Keys and Flags

After MD4 verification, plaintext is the fully decoded header. Its layout starts with a variable-length private blob (opaque, per-file), followed by the key slot and a fixed 40-byte trailer at the end:

# Fixed prefix: 5 × uint32 = 20 bytes
version           = read_u32(plaintext,  0)
min_loader_ver    = read_u32(plaintext,  4)
obfuscation_flags = read_u32(plaintext,  8)
private_tag       = read_u32(plaintext, 12)
private_size      = read_u32(plaintext, 16)

private_start     = 20
private_end       = private_start + private_size   # dynamic — varies per file

bytecode_xor_key  = read_u32(plaintext, private_end)      # uint32 request_key
owner_key         = read_u32(plaintext, private_end + 4)

trailer           = plaintext[-40:]
php_version_code  = read_u16(trailer, 2)           # 81..84 = PHP 8.1..8.4
php_flags         = read_u32(trailer, 4)
encoder_version   = trailer[8:12]                  # e.g. b'\x0f\x05\x00\x00' → v15.5.0

php_flags bitmask

T Toolchain: Source Code & Binary Artifact Extraction

The complete path from the HR+c header to normalized static opcode IR is implemented as a small Python 3.11+ toolchain. The input is always parsed as data; sample.php is never loaded or executed by PHP. Core container and body decoding use only the standard library. pefile is required when a loader DLL is supplied for handler-table and interned-string resolution.

Maintained source files

Available loader DLLs

Select the DLL whose minor version matches php_version_code in the protected file. The dumper infers this ABI from the header and rejects a recognizably mismatched ioncube_loader_win_8.x.dll filename.

Step 0 — Fingerprint the loader DLL

Before decoding files from a new loader build, run ioncube_loader_extractor.py directly against the DLL. It contains a minimal PE parser, uses only the Python standard library, and does not require IDA. The script locates the version-dispatch chain and the encoded file/header-size formulas, then prints constants ready to compare with decode_hrc_header.py.

python ioncube_loader_extractor.py ioncube_loader_win_8.x.dll

[1] VERSION DISPATCH
  VERSION_XOR  = 0x2853CEF2
  HRC_VERSIONS = { ... four accepted revisions ... }

[2] FILE SIZE CONSTANTS
  FILE_SIZE_XOR    = 0x23958CDE
  FILE_SIZE_OFFSET = 12321

[3] HEADER SIZE CONSTANTS
  HEADER_SIZE_XOR    = 0x184FF593
  HEADER_SIZE_OFFSET = 0x0C21672E

[4] BODY CONSTANTS
  VARIANT_TABLES       = TODO
  OPCODE_HANDLER_META  = TODO
  OPCODE_META_ID       = TODO
  TYPE_DIMENSION_TABLE = TODO
  GLOBAL_FEATURE_WORD  = TODO
  STRING_XOR_KEY       = TODO
  STRING_POINTER_TABLE = TODO

Step 1 — Decode the file and extract binary artifacts

decode_hrc_header.py implements the complete container stage. Running it produces a JSON report on stdout and optionally writes the decrypted header bytes and inflated body to disk for inspection:

# Inspect the decoded header and inflated body independently
python decode_hrc_header.py sample.php \
    --header-out header.bin \
    --body-out   body.bin

# What you get:
#   header.bin  —  decrypted, MD4-verified header  (≈ 399 bytes for v15.5.0)
#   body.bin    —  inflated PHP function records (plain binary stream)
#   stdout      —  JSON report with every field decoded

Step 2 — Decode every op array and build the static IR

The public entry point repeats the verified header/body decode internally, parses the main script and function records, resolves operands and jump targets, then emits both the human-readable opcode dump and normalized, consumer-neutral IR.

python dump_plain_file_static.py sample.php \
    --loader-dll path/to/ioncube_loader_win_8.x.dll \
    --out-dir sample_dump

# Output:
#   sample_dump/sample.icdump.json  — icdump-ir-v1
#   sample_dump/sample.icdump.txt   — readable opcode listing
#   stdout must end with: done: N decoded, 0 failed

The target ABI is read from the header; an explicit --php-version must agree with it, and the supplied loader DLL must match. The maintained toolchain stops at static IR.

Step 3 — Reconstruct readable PHP

Source reconstruction lives in a separate companion project. It consumes the generated icdump-ir-v1, builds basic blocks and a control-flow graph, lowers the result to a PHP AST, and emits formatted PHP source.

php-reconstruct sample_dump/sample.icdump.json \
    -o sample_dump/sample.reconstructed.php

Key code snapshots from decode_hrc_header.py

① Custom Base64 decode

The IonCube alphabet reorders digits to the front. The implementation translates to the standard alphabet first, then delegates to Python's base64 module — no manual bit-twiddling needed:

CUSTOM_B64   = b"0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz"
STANDARD_B64 = b"ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789"

def decode_custom_base64(data: bytes) -> bytes:
    compact = b"".join(data.split())               # strip whitespace / newlines
    translation = bytes.maketrans(CUSTOM_B64, STANDARD_B64)
    return base64.b64decode(compact.translate(translation), validate=True)

② Escape decode: 24 raw → 12 header bytes

def decode_escaped_block(data: bytes, output_size: int) -> bytes:
    output = bytearray()
    position = 0
    while len(output) < output_size:
        value = data[position]; position += 1
        if value == 0xFF:
            value = 0x3C if data[position] & 0x80 else 0xFF
            position += 1
        output.append(value)
    return bytes(output)

# Called as: decoded = decode_escaped_block(payload[4:28], 12)
# Result: struct.unpack("<III", decoded)  →  (raw_file_size, raw_header_size, seed)

③ Adler-17 checksum (init = 17)

def update_loader_checksum(checksum: int, data: bytes) -> int:
    low  = checksum & 0xFFFF
    high = checksum >> 16
    position = 0
    while position < len(data):
        end = min(position + 5552, len(data))
        for value in data[position:end]:
            low  += value
            high += low
        low  %= 0xFFF1
        high %= 0xFFF1
        position = end
    return low | (high << 16)

def loader_checksum(data: bytes) -> int:
    return update_loader_checksum(17, data)   # init = 17, NOT standard Adler-32's 1

④ MT4IC: the parity branch in _round_t2

This is the most critical implementation detail. The warm-up uses a different xorshift from the ring-fill, and the ring-fill itself has two variants:

def _round_t2(self, value: int) -> int:
    if self.odd_seed:           # seed & 1 == 1
        value = u32(value ^ u32(value << 13))
        value = u32(value ^ (value >> 17))
        return u32(value ^ u32(value << 5))
    # seed & 1 == 0
    value = u32(value ^ (value >> 9))
    value = u32(value ^ u32(value << 1))
    return u32(value ^ (value >> 7))

# Compare with the warm-up (seed % 9 rounds before ring fill):
#   t2 ^= (t2 << 10); t2 ^= (t2 >> 15); t2 ^= (t2 << 4); t2 ^= (t2 >> 13)
#   ← 4-step, completely different constants.
# A clone that copies the warm-up into the ring fill is wrong for every seed.

⑤ Full header decode pipeline — decode_file

The complete pipeline in one function — Base64 → version check → meta header → chunks → Adler-17 → MT4IC decrypt → MD4 verify → field parse:

def decode_file(path: Path) -> tuple[dict, bytes]:
    source = path.read_bytes()
    marker_offset = source.find(b"HR+c")           # ① locate marker
    payload = decode_custom_base64(source[marker_offset:])  # ② custom b64

    raw_version = read_u32(payload, 0)
    version = raw_version ^ VERSION_XOR             # ③ version check
    if version not in HRC_VERSIONS:
        raise ValueError(f"unexpected HR+c version 0x{version:08X}")

    meta = decode_meta_header(payload[4:28])        # ④ escape-decode + sizes
    encrypted_header, consumed, chunks = unchunk_header(
        payload[28:], meta.header_size              # ⑤ chunk assembly
    )
    stored_ck = read_u32(decode_escaped_block(transition, 4), 0)
    assert stored_ck == loader_checksum(payload[4:transition_offset])  # ⑥ Adler-17

    checksum = bytes(rol8(v) for v in encrypted_header[-16:])  # ⑦ ROL3 mask
    prng = MT4IC(meta.seed)
    decrypted = bytes(                              # ⑧ MT4IC XOR decrypt
        encrypted_header[i] ^ checksum[i & 0xF] ^ (prng.get() & 0xFF)
        for i in range(meta.header_size - 16)
    )
    assert md4(decrypted) == checksum              # ⑨ MD4 integrity gate

    initial = parse_initial_header(decrypted)      # ⑩ extract key fields
    trailer  = parse_header_trailer(decrypted)
    return report, decrypted

⑥ Extracting bytecode_xor_key from the decrypted header

def parse_initial_header(data: bytes) -> InitialHeader:
    version           = read_u32(data, 0)
    private_tag       = read_u32(data, 12)
    private_size      = read_u32(data, 16)
    private_start     = 20
    private_end       = private_start + private_size   # priv_end is dynamic

    bytecode_xor_key  = read_u32(data, private_end)    # ← the request_key
    owner_key         = read_u32(data, private_end + 4)

    # In sample.php: bytecode_xor_key = 0x0036F936

⑦ Full trailer — 40 bytes at end of decrypted header

def parse_header_trailer(data: bytes) -> HeaderTrailer:
    trailer = data[-40:]
    php_format_id, php_version_code = struct.unpack_from("<HH", trailer, 0)
    # php_version_code: 81..84 → "8.1".."8.4" (integer, not ASCII)

    return HeaderTrailer(
        php_format_id     = php_format_id,
        php_version_code  = php_version_code,          # target ABI profile
        php_flags         = read_u32(trailer, 4),       # 0x2C80 = opcode-XOR on
        encoder_generation= trailer[8],                 # 15
        encoder_major     = trailer[9],                 # 5
        encoder_minor     = trailer[10],                # 0
        ip_address        = ".".join(str(v) for v in trailer[20:24]),
        mac_address       = ":".join(f"{v:02x}" for v in trailer[24:30]),
        is_demo           = bool(trailer[30]),
        ...
    )

⑧ Sample JSON report (abbreviated)

{
  "raw_version":   "0x97A6BD55",
  "decoded_version": "0x4FF571B7",           // accepted HRC revision ✓
  "meta_header": {
    "seed":              "0xA3F1C820",
    "logical_file_size": 14832,
    "header_size":       399
  },
  "transition_checksum_matches": true,        // Adler-17 ✓
  "md4_matches": true,                        // MT4IC + MD4 ✓
  "initial_header": {
    "bytecode_xor_key": "0x0036F936",         // request_key used in §9 C3D0
    "version": 6
  },
  "header_trailer": {
    "php_version_code":  81,
    "inferred_php_version": "8.1",
    "php_flags": "0x00002C80",                // opcode-XOR layer active
    "encoder_generation": 15,
    "encoder_major":      5
  },
  "body": {
    "compressed_size":   9841,
    "decompressed_size": 41376,
    "all_checksums_match": true               // body Adler-17 frames ✓
  }
}

IDA Pro: ida_qo9_materialize_strings.py

The IonCube loader encodes every internal string constant using a proprietary length-prefixed XOR scheme called Qo9. Raw encoded bytes sitting in .rdata and .data are opaque to IDA's built-in string scanner — they never appear in the Strings window and carry no useful name. ida_qo9_materialize_strings.py reverses the encoding and writes the results directly into the open IDB so they become first-class IDA citizens.

What Qo9 encoding looks like

Two variants exist in the loader, distinguished by how the length byte is stored:

Both variants XOR each payload byte against a position-indexed key: out[i] = KEY[(offset + i) & mask] ^ raw[i+1]. The key bytes were recovered by reversing ic_qo9_decode_len16 (sub_44B747) and ic_qo9_decode_xor48_32 (sub_44B875) in IDA.

What the script does to the IDB

1. Scans .text, .rdata, and .data for valid Qo9 blobs (both codecs).
2. Creates a new IDA segment named QO9STR at the end of the address space.
3. Writes each decoded string there as a NUL-terminated C string and defines it with idc.create_strlit().
4. Names each string: qo9_<orig_ea>_<codec>_<text>.
5. Adds a repeatable comment on the original encoded location: DECODED_QO9 qo9_16 → QO9STR:0x…: "dynamic_key".
6. Adds a comment on every callsite that had a data-ref to the encoded blob: DECODED_QO9: "dynamic_key".
7. Adds data xrefs from each callsite to the decoded string in QO9STR.
8. Calls ida_strlist.build_strlist() so all decoded strings appear immediately in the IDA Strings window.

How to run it

The script requires the loader DLL to already be open in IDA Pro. Paste either line into the IDA Python console (File → Script command… or the bottom bar):

# One-liner — run from IDA Python console
exec(open(r"path\to\ida_qo9_materialize_strings.py", encoding="utf-8").read()); main()

Output — what you see in IDA after running

Result on ioncube_loader_win_8.x.dll

Running against a matching PHP 8.x loader with both codecs enabled recovers encoded strings across .text, .rdata, and .data; the total varies between loader builds. Strings surfaced include cipher names (rijndael, blowfish, cast, des), key-mode identifiers (dynamic, basic, random), PHP extension entry-points, error message templates, and internal state labels — all previously invisible to IDA's string scanner.

05 Body Decryption: Framed DEFLATE Stream

The body opens with two 32-bit seeds (primary_seed, secondary_seed), then a frame sequence. A separate MT4IC seeded from primary_seed decrypts the frames:

prng = MT4IC(primary_seed)
compressed = bytearray()

while pos < len(payload):
    flag, second = payload[pos], payload[pos + 1]
    pos += 2

    if flag < 0x80:
        # encrypted chunk: XOR `second` bytes with MT4IC byte stream
        for b in payload[pos : pos + second]:
            compressed.append(b ^ (prng.get() & 0xFF))
        pos += second

    elif (flag & 0xE0) == 0xA0:
        # Adler checksum marker — 4 escape-decoded bytes (verification point)
        stored = decode_escaped(payload[pos - 1:])
        assert stored == running_checksum

    elif (flag & 0xE0) == 0x80:
        compressed.append(second)   # literal byte pass-through

    elif (flag & 0xE0) == 0xC0:
        compressed.append(0x3C)     # literal '<'

body = zlib.decompress(bytes(compressed), wbits=-15)   # raw DEFLATE (no zlib header)

06 The Inflated Body: Function Record Layout

The inflated body is a flat byte array containing one serialized record per PHP function/method:

uint32   zero_sentinel       # always 0x00000000
uint32   blob_length         # size of inner body blob
uint32   outer_key_a         # PRNG6 seed_a for opcode-XOR
uint32   outer_key_b         # PRNG6 seed_b for opcode-XOR
[outer descriptor]           # variable-width → sub_10002FC0
uint16   name_length
char[]   table_name          # lowercase function name ("addtocart")
uint32   last_var, temp_var_count, outer_literal_count
uint8    num_args, required_num_args
uint32   fn_flags
[arg descriptors × num_args]
[variable name strings]
uint8    extra_flags
[optional filename string]
uint32   blob_tag            # "BLOB"
uint8[]  blob_data[blob_length]

07 Outer Descriptor & Cipher Selector

The outer descriptor is a variable-width structure that the encoder appends to each record. It terminates with two 32-bit words that encode cipher selection. IDA decompiles sub_10002FC0 as a sequential reader:

tag         = read_u8()
payload_len = read_u32()
payload     = read_bytes(payload_len)       # opaque, skipped
item_count  = read_u32()
for _ in range(item_count):
    item_len = read_u32()
    item     = read_bytes(item_len)         # per-item blob, skipped
word10      = read_u32()                    # cipher_id  material
word11      = read_u32()                    # cipher_arg material

Cipher Selector Decode

context    = len(table_name) + 1    # lowercase function name
cipher_id  = word10 ^ context
cipher_arg = word11 ^ context

Static cipher-type detection — blob geometry

Even without decrypting the body blob, the cipher type is recoverable from two fields present in the documented outer function record: blob_tag (a u32 read immediately before the blob data) and blob_len (the byte length of the blob itself).

Block ciphers such as Rijndael-128 prepend a 16-byte initialisation vector to the ciphertext, making the stored blob exactly 16 bytes larger than blob_tag. Stream-cipher (cipher0 / basic) blobs carry no such overhead, so both values are equal.

blob_tag = u32 read immediately before blob_data in the outer record
blob_len = len(blob_data)

if blob_len == blob_tag + 16:
    cipher_type = "random"   # block cipher (Rijndael class) — 16-byte IV overhead
elif blob_len == blob_tag:
    cipher_type = "basic"    # stream cipher (cipher0) — no block overhead

Verified on two distinct function types from the same encoded file:

What the static analyser recovers from an encoded function

In the documented v15 layouts, the outer function record remains parsable regardless of cipher type. It carries the function name (table_name), argument count, parameter names, and the PRNG6 opcode-seed pair (outer_key_a / outer_key_b). The body blob and its literals remain opaque until the runtime key is known.

The static dump records a typed IR stub for a function whose body cannot be decrypted, preserving its signature and the reason recovery stopped:

"static_dump_status": {
  "failed": true,
  "dynamic_key_stub": true,
  "cipher_type": "random",
  "blob_tag": 2600,
  "blob_len": 2616
}

08 The B180 Opcode Block (sub_1009B180)

struct B180Block:
    opcode_count  : uint32           // number of opcodes
    word_count    : uint32           // number of encoded words
    words         : uint32[word_count]
    aux_count     : uint32           // number of auxiliary records
    aux_records   : uint8[aux_count × 5]   // 5 bytes each

IDA Pro decompiled output (condensed):

read(&tmp, 4);  a2[1] = tmp;         // opcode_count
read(&tmp, 4);  a2[5] = tmp;         // word_count
if (tmp) a2[4] = alloc(4 * tmp);     // words[] buffer
read(&tmp, 4);  a2[7] = tmp;         // aux_count
if (tmp) a2[6] = alloc(5 * tmp);     // aux_records[] (5 bytes each)

Encoded Word Bit Layout

bits [7:0]    encoded opcode byte      (XOR-obfuscated — recovered by B3C0)
bit  [8]      result operand present   (consume 1 aux record if set)
bit  [9]      op1    operand present   (consume 1 aux record if set)
bit  [10]     op2    operand present   (consume 1 aux record if set)
bits [12:11]  extended_value mode:     00→0   01→1   10→0x3C   11→next word
bits [31:16]  line number              (0xFFFF → line num is in next word)

Auxiliary Record Format

struct AuxRecord:
    type  : uint8     # IS_UNUSED=0  IS_CONST=1  IS_TMP_VAR=2  IS_VAR=4  IS_CV=8
    value : uint32

# Jump target normalisation (sub_1009B200)
# One-based (JMP, JMPZ, JMPNZ, JMPZNZ, FE_FETCH_R/RW):
#     zero_based = stored_value - 1
# Zero-based (FE_RESET_R, FE_RESET_RW):
#     zero_based = stored_value

09 Opcode Obfuscation: PRNG6 + C3D0 / B3C0

When php_flags & 0x2C80 != 0, every opcode byte in the B180 word stream is XOR-obfuscated. Key generation is in sub_1009C3D0 (C3D0); decoding is in sub_1009B3C0 (B3C0). The PRNG is PRNG6 — two 32-bit half-word LCGs with interleaved output.

PRNG6 — sub_10091150

class PRNG6:
    def __init__(self, seed_a, seed_b):
        self.seed_a = seed_a & 0xFFFFFFFF
        self.seed_b = seed_b & 0xFFFFFFFF

    def next(self):
        # two independent half-word LCGs
        next_b = ((self.seed_b & 0xFFFF) * 0x7689 + (self.seed_b >> 16)) & 0xFFFFFFFF
        next_a = ((self.seed_a & 0xFFFF) * 0x4650 + (self.seed_a >> 16)) & 0xFFFFFFFF
        self.seed_b, self.seed_a = next_b, next_a
        # combine: ROL32(next_b, 16) + next_a
        return ((next_b << 16 | next_b >> 16) + next_a) & 0xFFFFFFFF

C3D0 — Key Stream Generation (sub_1009C3D0)

prng = PRNG6(outer_key_a, outer_key_b)   # seeds from outer record
key_bytes = bytearray()
for _ in range(opcode_count + 1):         # N+1 dwords
    dword = (prng.next() ^ request_key) & 0xFFFFFFFF
    key_bytes.extend(dword.to_bytes(4, 'little'))

# key_bytes[0 .. opcode_count-1]   → per-opcode XOR byte
# key_bytes[opcode_count ..]       → sentinel generation material (v6)

B3C0 — Opcode Recovery with Dual Sentinel (sub_1009B3C0)

The sentinel mechanism is the most subtle part of the pipeline. It makes the XOR stream self-synchronising: any opcode that would collide with the sentinel forces the key to zero, ensuring the sentinel value passes through unmodified.

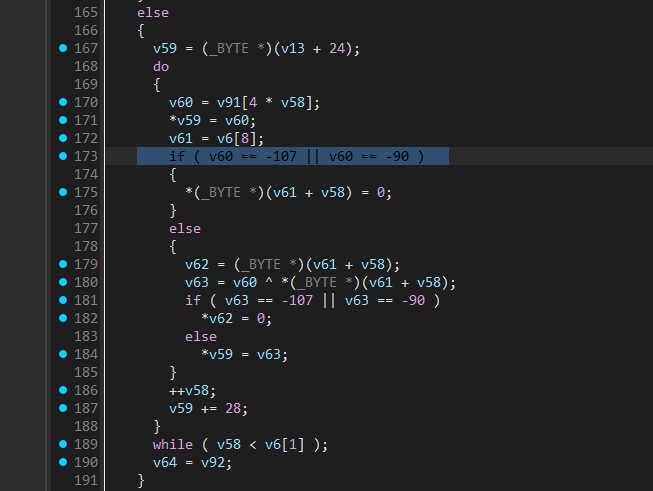

IDA decompiles the batch opcode path (the do-while in the LABEL_128 else-branch) with the sentinel checks in their clearest form:

v59 = (_BYTE *)(v13 + 24);    // first opcode slot in output
do
{
    v60 = v91[4 * v58];        // v91 = aux_records; v60 = raw opcode byte
    *v59 = v60;                // default: store raw (overwritten below if XOR applies)
    v61 = v6[8];               // v6[8] = key_bytes[] generated by C3D0

    if ( v60 == -107 || v60 == -90 )    // -107=0x95, -90=0xA6 — STAGE 1 SENTINEL
    {
        *(_BYTE *)(v61 + v58) = 0;      // zero the key byte; result stays raw (v60)
    }
    else
    {
        v62 = (_BYTE *)(v61 + v58);
        v63 = v60 ^ *(_BYTE *)(v61 + v58);   // XOR raw with key byte

        if ( v63 == -107 || v63 == -90 )     // STAGE 2 SENTINEL: XOR result IS sentinel
            *v62 = 0;                          // zero key; *v59 still holds raw v60
        else
            *v59 = v63;                        // store decoded opcode
    }
    ++v58;
    v59 += 28;                 // advance to next opcode slot (28-byte opcode struct)
}
while ( v58 < v6[1] );        // v6[1] = opcode_count

The main while(1) loop in the same function handles the same logic per-opcode with the v5/v6 version split: v24 = -107 for version < 6 (constant sentinel), or key_bytes[N+delta+i] ^ 0x95 for v6 (position-dependent sentinel). The second check uses v26 with the same v5/v6 distinction.

10 Dynamic-Key Methods

IonCube's encoder supports two dynamic-key modes that change what protection is applied to each method's encrypted body blob. Both add a runtime gate: the host application must pass the correct key to the loader before it will execute the file. But from a static analysis perspective the two modes are fundamentally different — one leaves the body completely recoverable from disk, the other does not. The full specification is in the IonCube Source Encoder User Guide (PDF).

Basic keys — body seeds live in the outer record

At encode time the encoder assigns a fixed key and derives two body-decrypt seeds from it. Those seeds are stored inside the outer function record (the CD30/CB50 prelude block that precedes the body blob). The MT4IC PRNG is seeded with those values and its output keystream is XOR-applied to the body blob to produce the plaintext opcode stream.

Because the seeds sit in the outer record — which is itself protected only by the MT4IC header layer we already broke in §04 — a static analyst can fully recover them from the encoded file on disk:

1. Decode the HR+c header (Base64 strip + XOR pass).
2. Break the MT4IC PRNG layer to reveal the file header and extract bytecode_xor_key.
3. Parse the B180 body to reach the method's outer record (CD30/CB50); read outer_key_a, outer_key_b, and the body decrypt seeds.
4. Seed a second MT4IC PRNG instance with those seeds → generate keystream → XOR with body blob → plaintext opcodes.

The runtime key gate (the host app calling ioncube_loader_iset_request_key() or ioncube_read_file()) is a separate mechanism: it controls whether the loader will hand execution to the script, but it does not hide the body decrypt seeds from a static reader. If the loader receives the wrong runtime key it will feed a bad value into its PRNG6 XOR pass and produce garbage opcodes — but that is entirely independent of our ability to decrypt the body blob directly from the file.

Random keys — body key is RSA-wrapped inside the file

For random-key functions the encoder does not store the body decrypt key in plaintext inside the outer record. Instead the body blob is encrypted under a session key that itself is wrapped with the loader's embedded RSA public key. The RSA-encrypted key blob is stored in the encoded file, but the only party that can unwrap it is the loader binary — because it holds the matching RSA private key.

The decryption chain the loader performs at runtime is:

1. Host supplies the per-request random key to the loader via the standard API.
2. Loader combines the runtime key with file-specific material to derive the Rijndael session key.
3. Loader unwraps the RSA blob with its embedded private key to verify or reconstruct the body cipher key.
4. Rijndael-decrypt the body blob (16-byte IV prepended → hence blob_len = blob_tag + 16) to recover opcodes.

From the encoded file alone a static analyst can still read the outer record metadata — parameter names, variable names, opcode counts, and the function signature are all present in the outer record's unencrypted fields. But the body blob itself is Rijndael-encrypted and the session key is inaccessible without the loader's RSA private key.

Side-by-side: what each mode exposes statically

Blob geometry as a cipher detector

Before spending effort on seed-search you can tell the two modes apart by measuring the body blob geometry in the outer record:

What the static analyser sees: bytecode_xor_key

Regardless of which mode the encoder used, the decrypted file header contains a 32-bit field called bytecode_xor_key (alias request_key). The loader passes this value into sub_1009C3D0, which XORs it into the PRNG6 key stream before applying that stream to every opcode word.

Statically, we recover bytecode_xor_key directly from the header — it sits behind the MT4IC PRNG layer we already broke, not behind the runtime key gate. For Basic-mode files this value is stable across every execution of the protected file. For Random-mode files it reflects the key used in the specific captured copy; any other execution will carry a different value.

sample.php: a concrete basic-key example

The method below is a basic-key encoded function: its body decrypt seeds are stored in the outer record (CD30/CB50 prelude) and are fully recoverable statically. addToCart from sample.php is the verified example:

blob_len == blob_tag (stream cipher, no overhead) confirms this is a basic-key function. The two body decrypt seeds feed directly into the MT4IC PRNG to produce the keystream that decrypts the blob.

Decoded Opcode Listing (first 10 of 47)

idx  line  op    mnemonic                operands
0000    6    63   ZEND_RECV               res=$productId
0001    6    64   ZEND_RECV_INIT          op2=lit[0]=1          res=$quantity
0002    6    64   ZEND_RECV_INIT          op2=lit[1]=[]         res=$options
0003    7    20   ZEND_IS_SMALLER         op1=$quantity  op2=lit[2]=1
0004    7    43   ZEND_JMPZ               op1=~0         op2→idx6
0005    7    62   ZEND_RETURN             op1=lit[3]=False
0006    9    89   ZEND_FETCH_IS           op1=lit[4]='_SESSION'
0007    9   115   ZEND_ISSET_ISEMPTY_DIM  op1=~1         op2=lit[5]='cart'
0008    9    14   ZEND_BOOL_NOT           op1=~2
0009    9    43   ZEND_JMPZ               op1=~3         op2→idx13
...    [37 more opcodes]

The full 47-opcode listing shows a function that:

• Validates $quantity >= 1 (returns false otherwise)
• Initialises $_SESSION['cart'] if absent
• Calls getProductDetails($productId)
• Builds a unique item key via md5(json_encode($options))
• Assembles a cart-item array: id, name, price, quantity, subtotal
• Calls calculateCartTotal() and returns true

11 Static Dump Validation

The end-to-end fixture is named sample.php. Validation is based on the generated structure rather than on source-code comparison or runtime instrumentation.

CONTAINER
  transition Adler checksum     PASS
  decrypted-header MD4          PASS
  body-frame Adler checksums    PASS

STATIC DUMP
  main op_array                 decoded
  function op_arrays            decoded
  literals / CVs / operands     resolved
  jump targets                  normalized
  failed op_arrays              0
  sample.icdump.json            valid icdump-ir-v1
  sample.icdump.txt             readable opcode listing

12 Version Profiles: PHP 8.1–8.4

The v15 container path is shared by the tested loaders, but body materialization is ABI-specific. Treating every target as “8.1 plus a different DLL” produced subtle errors: wrong handler candidates, unresolved interned strings, and integer literals shifted by two. The maintained decoder now selects an explicit profile:

Stable foundation, versioned edges

• The custom Base64 alphabet and 0xFF escape codec are shared by the tested v15 files.
• Container checksums remain strong gates, but they do not validate handler tables.
• Zend operand kinds are stable enough to share parsing code; opcode bounds and names are not.
• The target ABI comes from the header trailer and must match the supplied loader DLL.

Opcode bounds and names were checked against the official PHP 8.2, PHP 8.3, and PHP 8.4 Zend headers.

13 Pipeline Summary

sample.php
  │
  ├─ strip PHP preamble → locate HR+c marker
  ├─ custom Base64 decode (digit-first alphabet)
  ├─ verify version_word ^ 0x2853CEF2 is an accepted HRC revision
  ├─ escape-decode meta header → seed, file_size, header_size
  ├─ unchunk → encrypted_header[header_size]
  ├─ verify Adler transition checksum (init=17)    ← gate #1
  │
  ├─ MT4IC(seed) decrypt header + ROL3 mask
  ├─ MD4 verify                                    ← gate #2
  ├─ parse header → request_key, php_flags
  │
  ├─ MT4IC(primary_seed) decrypt body frames
  ├─ body chunk Adler checksums                    ← gate #3
  ├─ zlib decompress (raw DEFLATE) → in-memory body stream
  │
  ├─ enumerate main + function records
  ├─ parse each outer record and decode its inner op_array
  ├─ read B180 blocks (opcode words + auxiliary operands)
  ├─ generate C3D0 key streams
  │     PRNG6(outer_key_a, outer_key_b) ^ request_key
  ├─ recover opcodes through B3C0 dual-sentinel + XOR
  ├─ apply handler/string tables from the matching PHP 8.1–8.4 DLL profile
  ├─ resolve literals, interned strings, variables and function calls
  ├─ normalize jump targets and safe values
  │
  ├─ write sample_dump/sample.icdump.txt
  └─ write sample_dump/sample.icdump.json (icdump-ir-v1)

Encryption layer stack

Each protection layer wraps everything below it. The static tool breaks them from outside in, using the checksum gates at each boundary as correctness signals:

Decode pipeline — visual

14 Conclusion

IonCube's protection rests on a layered stack of proprietary PRNGs, custom container formats, per-method key schedules, and opcode obfuscation. Each layer was individually identified through static analysis of the loader DLL in IDA Pro — no PHP runtime was involved, no candidate source code was aligned against the output.

The key architectural insight is that container decoding, ABI-specific op_array recovery, and IR normalization remain separate, testable stages. The maintained entry point emits static opcode dumps for the supported plain-encoded PHP 8.1–8.4 profiles without executing the encoded sample. The companion ioncube-php8-decompiler project consumes that IR when readable PHP source is required.

Porting a future loader means validating the shared container first, then extracting the versioned handler and interned-string tables and checking the target Zend opcode set. The checksum gates validate the outer layers; opcode and fixture checks validate the ABI-specific layer.
